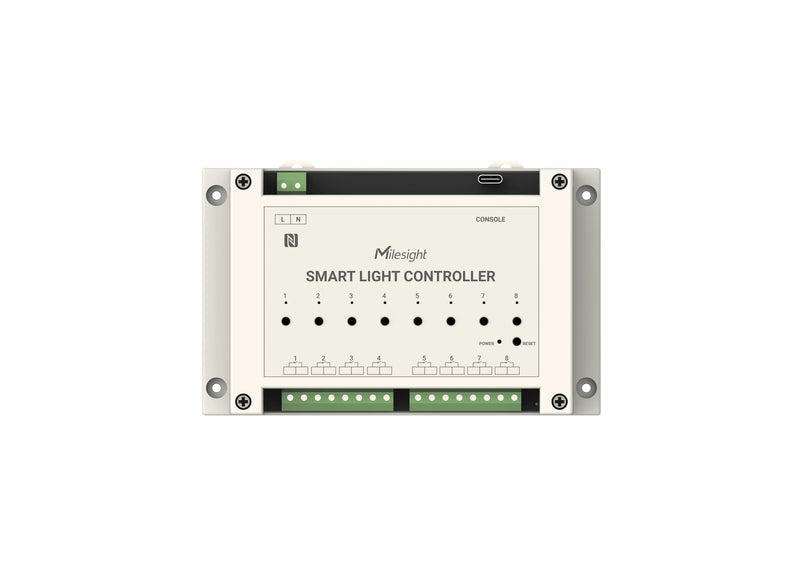

WS558-LN – 8-Circuit LoRaWAN Lighting Controller – Milesight

Contrôleur WS558-LN Milesight LoRaWAN, 8 circuits, mesure énergie, contrôle local/distant, NFC, D2D, idéal pour bâtiments intelligents

🚀 Livraison Express Disponible

Expédition immédiate sous 24-48h

Commandez avant 16h, votre produit part le jour même !

France métropolitaine: 2-3 jours ouvrés
Europe: 3-5 jours ouvrés
Prix sur demande
Contactez-nous pour obtenir un devis personnalisé adapté à vos besoins
Livraison sécurisée
Garantie fabricant
Support technique
4.8/5 (127 avis)
En stock
Demander un devis personnalisé pour ce produit

Tarifs Professionnels

Accédez à nos tarifs professionnels dégressifs et conditions de paiement privilégiées.

Remises jusqu'à 30% selon les volumes.

Se connecter pour voir les prix pro

Moyens de Paiement Acceptés

AMEX
PAY
G Pay
VIREMENT SEPA
CHÈQUE
Paiement sécurisé • Facturation avec TVA • Conditions de paiement B2B disponibles

Description détaillée

WS558-LN – 8-Circuit LoRaWAN Lighting Controller – Milesight

General Description

Milesight 's WS558-LN is a LoRaWAN®-enabled smart lighting controller designed to manage up to 8 lighting circuits with maximum flexibility. It offers local or remote control, advanced time scheduling, energy consumption measurement, and simplified configuration via NFC. Thanks to its compatibility with the Milesight D2D protocol, it offers direct communication between devices without a gateway, ideal for smart buildings.

Targeted Applications

  • Offices and coworking spaces
  • Shopping centers and stores
  • Schools and universities
  • Hospitals and clinics
  • Industries and warehouses

Highlights

  • Control of 8 independent lighting circuits
  • Local control via physical buttons and remote control via LoRaWAN®
  • Time programming up to 18 hours of delay
  • Real-time measurement of voltage, current, power and consumption
  • Overcurrent and short circuit protection
  • Memory function in case of power failure
  • Quick setup via NFC or USB Type-C
  • Direct communication between devices using the Milesight D2D protocol
  • Flexible installation: wall or DIN rail mounting

Technical Specifications

Electric
Type of circuit LN (Phase + Neutral required)
Input voltage 100~250 VAC, 50~60 Hz
Active outputs 8
Capacitive & inductive load Max 5 A per output, total 16 A
Resistive load Max 10 A per output, total 16 A
Electrical measurements Voltage (VAC), Current (mA), Power Factor (%), Power (W), Consumption (kWh)
Wireless transmission
Protocol LoRaWAN®, Milesight D2D
Supported frequencies CN470 / IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4
Transmit power 16 dBm (868 MHz) / 22 dBm (915 MHz) / 19 dBm (470 MHz)
Sensitivity -137 dBm
Fashion OTAA / ABP – Class C
Software
Configuration NFC, USB Type-C or downlink control
Switch control Local button or remote control
Advanced Features Multicast, remote scheduling, overcurrent protection, Milesight D2D agent
Physical characteristics
Color / Material Cream white, ABS
Operating temperature -20°C to +60°C
Relative humidity ≤ 95% (non-condensing)
Dimensions 145 × 90 × 40 mm
Facility Wall or DIN rail mounting

Interfaces and Connectors

The WS558-LN features an NFC interface for quick setup via the Milesight ToolBox mobile app. It also features a USB Type-C port for wired setup and supports downlink commands via the LoRaWAN® network. The Milesight D2D protocol enables direct device-to-device communication without a gateway, delivering ultra-low latency for circuit control.

Pack Contents

  • 1 × Milesight WS558-LN Smart Lighting Controller
  • 1 × Wall Mounting Kit
  • 1 × Quick Start Guide
  • 1 × Warranty Card
